產品代碼:AUSB16ADDA

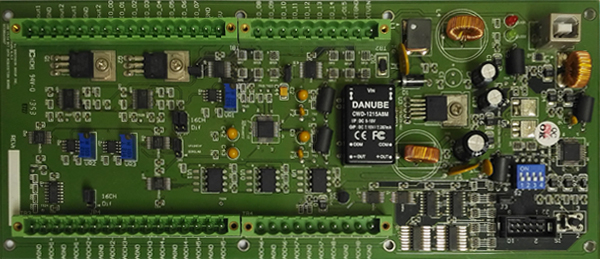

USB 16 Bit Data Acquisition Board
Bus: USB
2.0/ RS-232/422/485
產品描述:
1 digital input/digital output channels and the resolution is 16 bits.
16 A/D channels and the resolution is 16 bits.
A/D input voltage range:
0 TO +5 V (10 V p-p),
0 TO +10 V (20 V p-p) for unipolar,
-5 V TO +5V (20 V p-p),
-10 V TO +10V (40 V p-p) for bipolar.
2 D/A channels and the resolution is 16 bits.
D/A Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, 0 mA to 24 mA ±0.01 %
FSR typical total unadjusted error (TUE) ±3 ppm/°C D/A
D/A Voltage output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, ±10 V 10% overrange
±0.01 %
FSR typical total unadjusted error (TUE) ±2 ppm/°C
output drift 2500V isolation voltage.
|
|
特色:
- 端子 與 DIN-Rail 規格基座可供選購
- 高速 8051 μC 核心
- USB 2.0 控制器
- 支援 USB ID 0~14 組
- 支援 RS-232/422/485 控制
- 由 External DC+9~36V 2.5A 供電
軟體支援/驅動程式:
Windows-XP Vista will use CDC/ACM virtual
com port and sample for prosgramming.
產品附件:
USB 16 Data Acquisition Board
USB cable
軟體及使用者手冊 CD
工作溫度值：0 ~ 55°C.
相對濕度範圍: 0 ~ 90%.
尺寸: 250 mm x 120 mm x
55 mm |
|
